Chủ Nhật, 27 tháng 1, 2013

Maiden Fly New fordable Y6 with YS-X4 FC

Today the AFS-Y6 copter has been maidened and I am very happy with performance.
Some Pics to share:
The final kit with 15x55 props, the landing gear is temporary and will change to new one with camera gimbal and also need the canopy.

Closer view of electronic parts: Flight controler YS-X4.ESC is Hobbywing 30A-6S design for multicopter. Motors are new sunnysky 3508 disk type motor.
Looking for sky and ready to maiden

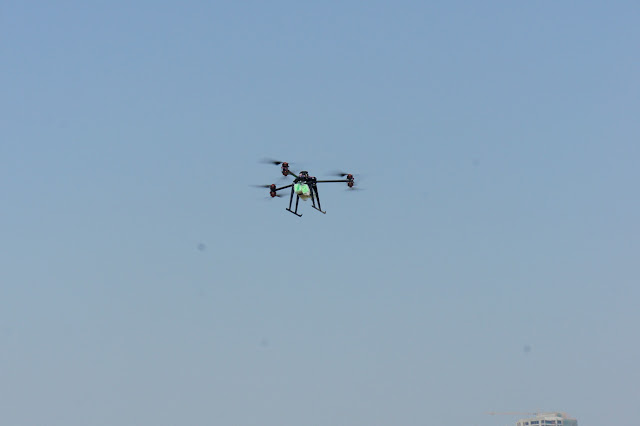

Take of and fly
Take of with once extra battery as the load testing, the second battery is not connect to power.
The flight is perfect, the motor is so quiets. The YS-X4 as the Ys-X6 do an excellence GPS hold.

Some test results:
With one 6S - 5000maH All flight Weight  is 2.5kgs and it can fly for 20 minutes and take 4000maH re-charged.
With one extra battery as the load (0.8kg =  Gimbal and Sony NEX5n) make total weight as 3.3kgs, it can fly for 12 minutes with the same 4000maH charge back after flight.

Short video is on uploading.....

 Next test fly will be extended the telemetry link and do way-point test since my Ys-X4 is navigator version.

Chủ Nhật, 20 tháng 1, 2013

Back with Ys-X4 Octo and Foldable Y6

Hi ,
It is rather busy time for last few weeks. Now it is time to get back to my hobby: built multicopter.
This time I start with Ys-X4 since it is new and good price 650USD for full navigator version ( 8 way points unlimited distance).
First it come to my Overlap Mikrokopter Octo as required from my friend. He like to YS-X6 since it is more simple to setup and control by his Android phone. I post to sale the MK electronic for that requirement. However the YS-X4 come so I give it a try with this OCto electronic replace ment and also my new foldable Y6 which also modify my old design frame.
The Ys-X4 Navidation version is good, the case of FC is make from alu (Why???)  so it rather heavy.

I bought 2 of this from Himodel.

I did replcae the Mk electronic with thsi Ys-X4 and give Octo back to my friend, and forgot to take pics. I will update it soon.
( Image need to updated)

The second is build new fordable Y6 copter which is redesign of my old Y6 version
The Configuration is :
FC: Ys-X4 navigation WiFi version
Motors are Sunnysky new disktype 3508 - 380KV motors  running at 6S config with 15x55 carbon props
The ESC are also Hobbywing Platium Pro 30A -6S Opto for multirotor

Kit when folded
 and Opennning
and full Open

 More to Come .......
