Thứ Năm, 19 tháng 9, 2013

Foldable landing year for Y6

Just update this design of my Y6. Close view ..

 all 3 landing

 Extracted & Folded

Life so busy .... poor me

Thứ Hai, 22 tháng 7, 2013

Back to Y6

Just re design  the Y6, and start to built one for myself.

one more pic when it folded

Thứ Bảy, 6 tháng 7, 2013

Prototype Brushless Gimbal Sony NEX5

Hi friends,
Just have some free time for my process of design new brushless gimbal for Sony NEX5.
Some pics of assembly. However It needs to be some modify for easy to balance and suitable for more motor types.

Video of balance test

Thứ Sáu, 28 tháng 6, 2013

Crazy busy.. no time for RC :-((

Few months already have no time for RC and my hobby :-((
Hope to get back to this my next month.

Thứ Bảy, 27 tháng 4, 2013

RCTIMER Brushless Gimbal for GOPRO

Dear friends,

I just receiver the alu Brushless gimbal for Gopro from RCTIMER. It is 99.99 USD + 5 USD shipped to my place - Viet Nam.
To day is start of public holiday in Vietnam and my family will go for travel. However, I can not stop myself to assembly it :-)
Here are pics of how it is when assembly.
Box open, what we have including an Alu gimbal kit, parts are well manufacturing,all the screw, the anti vibration damper and carbon plates. I hate this Blog tool since it is just rotate my pics :-(
The motor is 2212 which is make for Brushless gimbal it have 12P. It also comes with the wire for connect to control board.
 half assembled
 The hold for the motor shaft and the left side shaft is a bit small maybe because of the  anodise, I have to drill it for fixing to the motor shaft.
 Finally it is smooth turns. The Vibration damper is soft and hope it will gives jello free.

Now it is time  for travel and enjoin holidays. I will back with electronic part on 1st of May. The control board will be open source V3 board from as the previous gopro carbon gimbal.

Thứ Bảy, 20 tháng 4, 2013

GoPro brushless gimbal and Gimbal control

Hi ,
The brushless gimbal become more and more used.I try one from which is very good in price. and the gimbal control used open source code.
The setup is very simple and it work right after finish setup
 The controller also from taobao
These are good option for any one love the brushless gimbal
The youtube video

Thứ Sáu, 15 tháng 3, 2013

Tarot FY-680 Hexa - Cont

Wow it is the busy time and just have some free tiem to day for motor assembly.
The motor is Foxtech 48-22 690 KV. I actually want to used the Sunnysky 3508 - 380 KV for 4S but this motor used 15" props and this kit can used max 13" only. May be I will make an extention with X650 motor mount parts.
However, this is some pics to shared

Thứ Ba, 12 tháng 3, 2013

Tarot FY-680 Hexa

Today I have new build hexacopter  kit from tarot FY680. This is foldable kit.
Some pic of kit build log. I am still consider on the electronic for this kit
KIT review: I am not sure if this is genius tarot kit since I got it from taobao website.

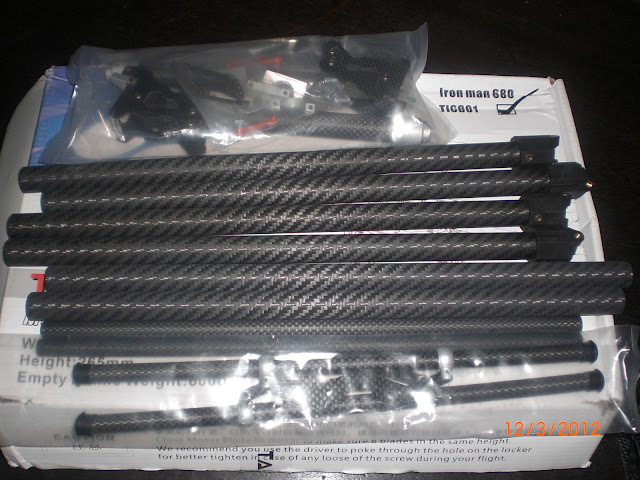

 what we have inside
 Out of BOX
 Closer look for carbon quality. The carbon is Ok butt he CNC is not really god . I think it is bunch, not CNC. The screws is not really good which is the same as tarot heli kit.
 Booms are carbon and very light weight.
 Just put parts together , in folded and unfold. The arm are very solid locked when folded and unfolded.

Hope to finish the kit assembly by next day.

Thứ Sáu, 8 tháng 3, 2013

Vtail Quad finish

finally the Vtail ahs been finished after 2 busy weeks :-)
Some pics to share:
With esc 30A reload simonk firmware and the sunnysky 2212 - 980KV  motors.
10x45 props on and Flycontrol is multiwii 2.1

thinking of new project :-))

Thứ Sáu, 8 tháng 2, 2013

A Vtail quad for fun

Just have some holiday and do a Vtail for friend.
Motors are  planed to used is 2212 from sunnysky 10x47 props .Some pics
 View from side , the landing gear is foldable
 Closer view
 You can see how the landing gears when folded
 Also the arms are fold able too make it smaller when moving around by bike

The Lunar new year come so I will update process after that.

Chủ Nhật, 27 tháng 1, 2013

Maiden Fly New fordable Y6 with YS-X4 FC

Today the AFS-Y6 copter has been maidened and I am very happy with performance.
Some Pics to share:
The final kit with 15x55 props, the landing gear is temporary and will change to new one with camera gimbal and also need the canopy.

Closer view of electronic parts: Flight controler YS-X4.ESC is Hobbywing 30A-6S design for multicopter. Motors are new sunnysky 3508 disk type motor.
Looking for sky and ready to maiden
Take of and fly
Take of with once extra battery as the load testing, the second battery is not connect to power.
The flight is perfect, the motor is so quiets. The YS-X4 as the Ys-X6 do an excellence GPS hold.

Some test results:
With one 6S - 5000maH All flight Weight  is 2.5kgs and it can fly for 20 minutes and take 4000maH re-charged.
With one extra battery as the load (0.8kg =  Gimbal and Sony NEX5n) make total weight as 3.3kgs, it can fly for 12 minutes with the same 4000maH charge back after flight.

Short video is on uploading.....

 Next test fly will be extended the telemetry link and do way-point test since my Ys-X4 is navigator version.

Chủ Nhật, 20 tháng 1, 2013

Back with Ys-X4 Octo and Foldable Y6

Hi ,
It is rather busy time for last few weeks. Now it is time to get back to my hobby: built multicopter.
This time I start with Ys-X4 since it is new and good price 650USD for full navigator version ( 8 way points unlimited distance).
First it come to my Overlap Mikrokopter Octo as required from my friend. He like to YS-X6 since it is more simple to setup and control by his Android phone. I post to sale the MK electronic for that requirement. However the YS-X4 come so I give it a try with this OCto electronic replace ment and also my new foldable Y6 which also modify my old design frame.
The Ys-X4 Navidation version is good, the case of FC is make from alu (Why???)  so it rather heavy.

I bought 2 of this from Himodel.

I did replcae the Mk electronic with thsi Ys-X4 and give Octo back to my friend, and forgot to take pics. I will update it soon.
( Image need to updated)

The second is build new fordable Y6 copter which is redesign of my old Y6 version
The Configuration is :
FC: Ys-X4 navigation WiFi version
Motors are Sunnysky new disktype 3508 - 380KV motors  running at 6S config with 15x55 carbon props
The ESC are also Hobbywing Platium Pro 30A -6S Opto for multirotor

Kit when folded
 and Opennning
and full Open

 More to Come .......
