Thứ Sáu, 12 tháng 9, 2014

Long time no Post

I build some new quad but has notime for upload to this blog:-(

I build some fpvquad250 for fpf racing also.
Hope got time to update some buildlog anf review.

Thứ Năm, 12 tháng 6, 2014

Propeller Profile - Confusing ......

Hi all,

Just upgrade the motors for my Kong620 and plane to try 16:" prop but, I am confuse of prop profile selection.

I search for 16x55" prop and see this 5 difference profile. Please give advise which one you think is better from profile point of view.

Also if you one already used these prop, please give advise. Thanks in advance.

Here are props:
1- 16x 5.5 3K Carbon Fiber Propeller Set CW/CCW - Direct mounting

2- 16x 5.5 inch 3K Carbon Propeller Set (one CW, one CCW) - Sharp Tip

3- 16x5.5 inch 3K Carbon Fiber Propeller Set CW/CCW

4- 16x5.5 Carbon Fiber Propeller Set CW/CCW

5- TOMO Series 16x 5.5 inch 3K Carbon High Efficiency Propeller Set (one CW, one CCW)

I am confusing about these profile. Price is not big difference.

Looking forward to here the advise.

Best regards
caotri is online now Send a private message to caotri Find More Posts by caotri

Thứ Bảy, 31 tháng 5, 2014

Kongcopter 620 - maiden flight

I do maiden today with my Kong copter 620.


Kongcopter reform to 620 size.
Motor Sunnysky V2508 - 380KV - prop 15x5"
ESC Hobbyking F-30A with simonk frmware reload. The esc not really OK, it still got sync proplem but not too bad.  My friends said he used Wii-ESC for this F-30A and no sync problem at all.
Tarot Gimbal and goro 3+.
Flight control APM with telemetry and power management board

Test 1:  With 4S 3500mAh . AUW = 2060 grams
First flight :  hover 8 minutes, current is 17A to 19A , battery down to 3.8 volt , recharged 1847mAh.
Second flight: Sport flight 8 minutes, current 17A to 19A battery down to 3.84A, recharged 1500mAh. It seem sport flight consume less power than Hover.

So with my 4S 3500mAh it can fly about 12 minutes saferty.

Test 1: 2x 4S 3500mAh , AUW 2418 grams
First flight: Sport flight 12 minutes, curretn 23-25A, battery down to 3.8 volt, recharged 1850mAh/each battery.
Second flight : Sport flight 15 minutes, curretn 23-25A, battery downo 3.75volt, recharged 2000mAh/each battery

With 2 batterry upt o 80% discharge I expect to fly about 20 minutes.

I will reflash esc with wii-ESC firmware and hope it get out of sync problem.

Thứ Hai, 19 tháng 5, 2014

Reform my Kong 450 to 620 with low RPM, big props setup for long flight time - CONTINUTE

Got some free time to day, I start electronic assembly.
The Esc used are Hobbyking F-30A all B-FET. I re-flash with BS-Nfet.hex Simonk firmware.
Start to assembly on kit. flight control is APM 2.5.2 with power management board
All electronic assembled including telemetry rc-timer 433MHz
Almost finish , the total weight not including battery and gopro gimbal is 1434 grams.

The tarot gimbal+gopro+immersion 600mw +antena cost me 300grams more. The battery will be 3500mAh 4S weight about 450 gram.
So AUW will be about 2.25kg for 1 pask of 4S 3500mAh or 2.7kg for 2packs of 4S 3500mAh.
It is OK for this size 620 M2M with 15x5" props.

Thứ Bảy, 17 tháng 5, 2014

Reform my Kong 450 to 620 with low RPM, big props setup for long flight time

I like to spider quad. I also have a Sky-hero 750 and Kongcopter 450 from X-CAM.
However they do not support disk type motors which I like for low rpm setup.
As you know I also built a ironman 650 quad with lower rpm and big prop setup which can fly 25 minutes on 3S 5500 mAh.

I start new project to reform my Kong 450 to low rpm , big prop setup.

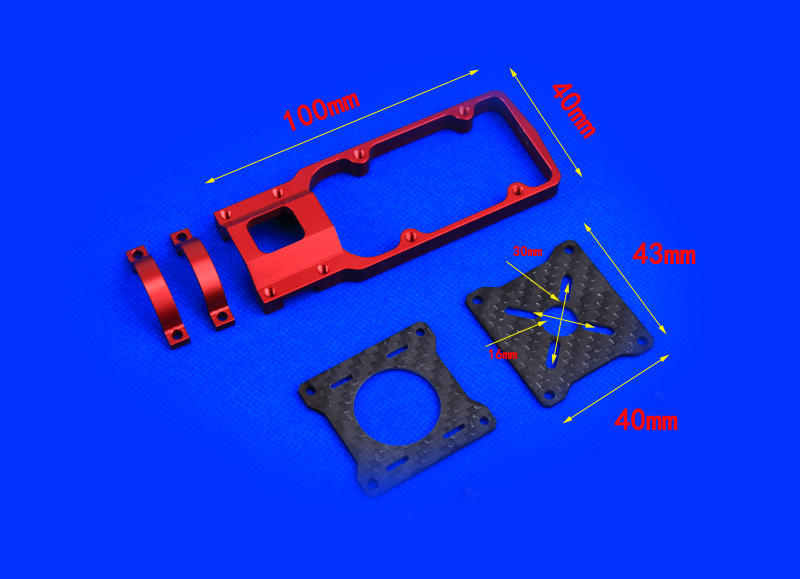

I bought a set of carbon arm tube for Kong 550 size and 4 of 25mm alu motor base from himodel.

Replace the 450 alu tube and motor base with this I for the quad with M2M is 620mm. So I have a Kongcopter 620 which and used large disk type motor.

My setup for this:

My reform Kong Copter 620.
Motor Sunnysky V3508-380KV with 15x5 props and 4S battery.
Tube version 20A Simonk firmware ESC as my iron man long flight time quad
Kit , motor are ready, need tiem for esc wiring and setup APM.

Hope I can finish it by next weekend ...

Chủ Nhật, 11 tháng 5, 2014

Longflight time quad built

Some pics of maiden. It do 25 minutes flight with 3S 5500mAh battery and the voltage after flight is 11.01 volts.

Thứ Bảy, 5 tháng 4, 2014

Long Flight X8 Quad Build for FPV

Hi ,

I love your built and try to buy my X8 also. Hơever I start with Quad config first.
This is my config:
Kit Iroman tarot 650
Motro sunnysky 3508V- 380KV
Props carbon from himodel 17x55 fly at 3S 5000mah or 2x 3S 5000mah
Flight Control is Adrucopter 2.5.2 with firmware
ESS BLHeli 20A ESC tube version: I love this since it used the BLheli firmware and easy to wired.

More detail part:
The BLHeli ESC Tube version

Motor SunnySky V-series 3508-360KV I have 6 of them now will buy 2 more for X8 after this quad build.

ESC and motor assembled within tube.

Almost finish the kit and motor , esc. Next will be the adrucopter FC and other FPV stuffs.

For easy to carry to fiels, I used the quick release prop adapter:

With props, ready fro FC config.

Hope to finish it soon and test of fligh time.
It will become X8 after all but I love to try with quad config frrst.

Thứ Hai, 3 tháng 3, 2014

Sky- Hero spyder 750

My Sky hero spyder assembled.
Motor arm - this is what I hate of this ke=it since it can support upto 28xx size motor
The body is so strong - I like this

 With landing gear
 Kit almost ready for Electronic parts. The topcover is not assembled since waiting for Flight control ans ESC

 canopy on

Also with my heli addict - GAUi X3

Gaui X3 heli combo - size 480
all part open with full combo including GAUI Vbar
Kit finish - it take ti to assembly this since all need to build your self - Non re assembled
Ready to fly

GAUI 540H Hexa - just for fun

Gaui H540 hexa with sunnysky angle 2212 - 10x4 props
Flight control Zero UAv X4 navigation version wifi with 8 waypoint
ESC BLHeli tube version 20A.

Back with RC hobby

Hi, Take some time make new copter incluidng gaui X3 heli copter, Gaui 540H hẽa and also thí Kongcopter 450 X8.

My Kong ready for setup.

Kit Kong copter 450 with X8 config
Motor 2216 Sunny-sky 800KV
Props: Hiprop wooden 11x4
ESC: Hobbywing quattro 4in1 x 2 pcs with BLHeli firmware reloaded.
FC: APM 2.5.2 - rctimer telemetry and Neo-6 GPS combo

Total weight 1.62Kgs without battery .

Plant to used 3S 5500mah 45C battery from wild scorpion

X8 with 2212 motors
This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

2 4in1 esc with in frame
This image has been resized. Click this bar to view the full image. The original image is sized 720x960.

This image has been resized. Click this bar to view the full image. The original image is sized 720x960.

The Flight Control board + telemetry + GPS

With the canopy on

Hope you like this.
